Applications: For testing indentation hardness of soft vulcansied rubber and other elastomeric materials. It is particularly suitable for testing in areas inaccessible to a conventional dial type Durometer.

Range : 0 to 100 Shore-A nos. on a Vernier Scale graduated in steps of five with interpolation to two points attainable with normal vision.

Standards : conforms to the revised German Standard DIN-53 505 & American Standard ASTM D22420

Technical Data:

• Indentor :Truncated Cone.
• Vernier Scale : Graduated in steps of 5 with visual interpolation to 2 Shore points.
• Packing : In a wooden box.
• Dimensions : mm 12.5dia 114 long.
• Nett Weight : g 60
• MODEL : SHR - A - PEN

It is available in Three Models

Model

• SHR-A-Di-PEN
• SHR-D-Di-PEN
• SHR-(A+D)-Di-PEN

• Indentor : Truncated/Conical
• Scale : 0 - 100
• Diamentions : mm18 dia x mm 180 long
• Weight : g 250
• Range : 0 to 100 Shore nos.

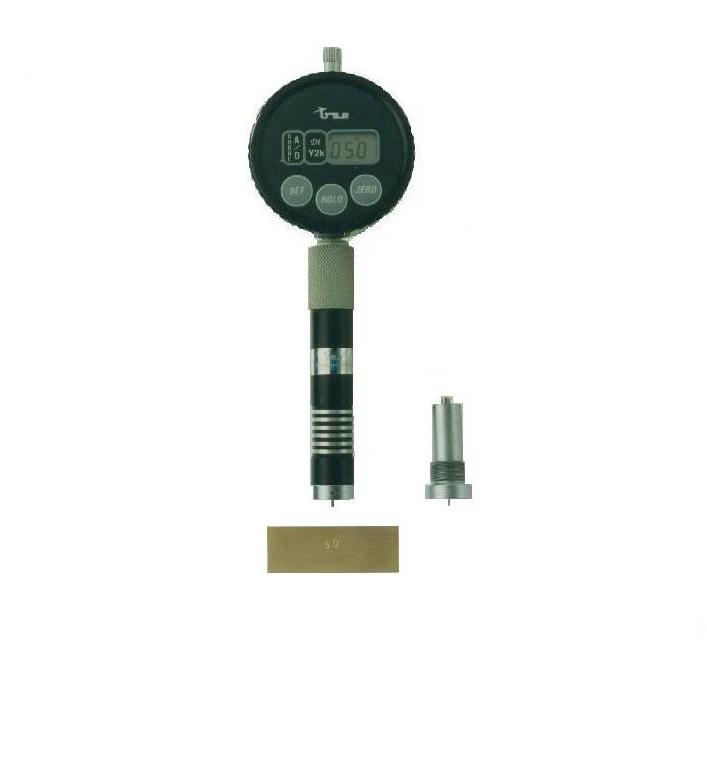

This durometer incorporates both shore A and shore D scales in one instrument.

The Durometer is supplied with 2 precalibrated load cells, one for shore A scale and the other for shore D scale.

Both load cells are screwable to the main body. The teser come fitted with laod cell for shore A scale while the load cell for shore D scale is supplied extra.

• Model : SHR (A+D) - Di - Y2K
